Welcome to the Hunter Industrial Virtual Showroom. We'd love to help you upgrade your space with one of our commercial or industrial fans.
Our 14-Foot HVLS Fan Lineup
Three performance tiers. Same massive 14-foot diameter. Choose the one that fits your budget and coverage needs.

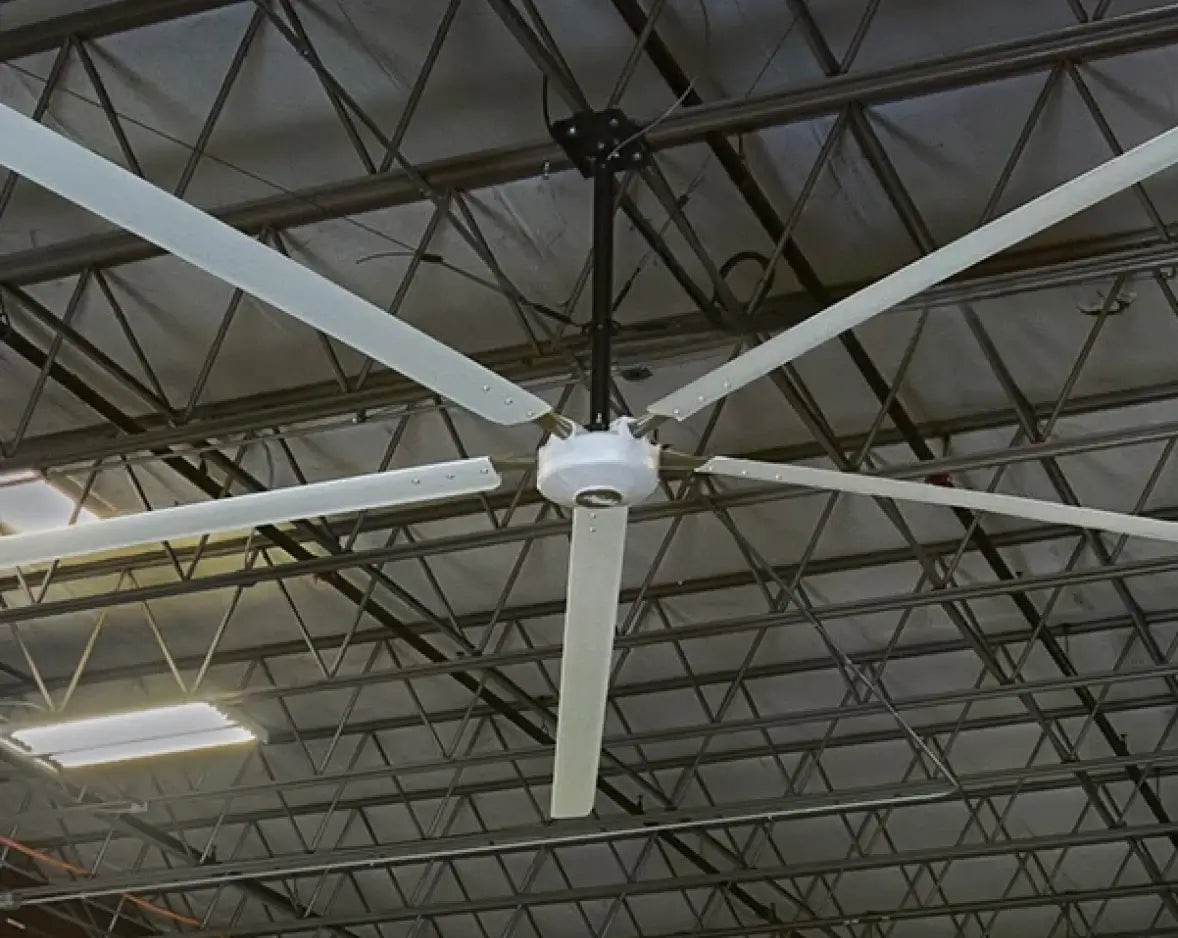

Titan 14'
Premium performance for larger mid-size spaces. At 7,744 sq. ft. of coverage, the largest footprint in the 14-foot lineup, the Titan HVLS Fan is the right call when you need to cover every corner of a busy service bay or open-plan facility. Hunter Industrial's flagship HVLS model features a Direct Drive Motor and patented structural-grade steel blade holder. AMCA Certified. Backed by a Limited Lifetime Warranty.

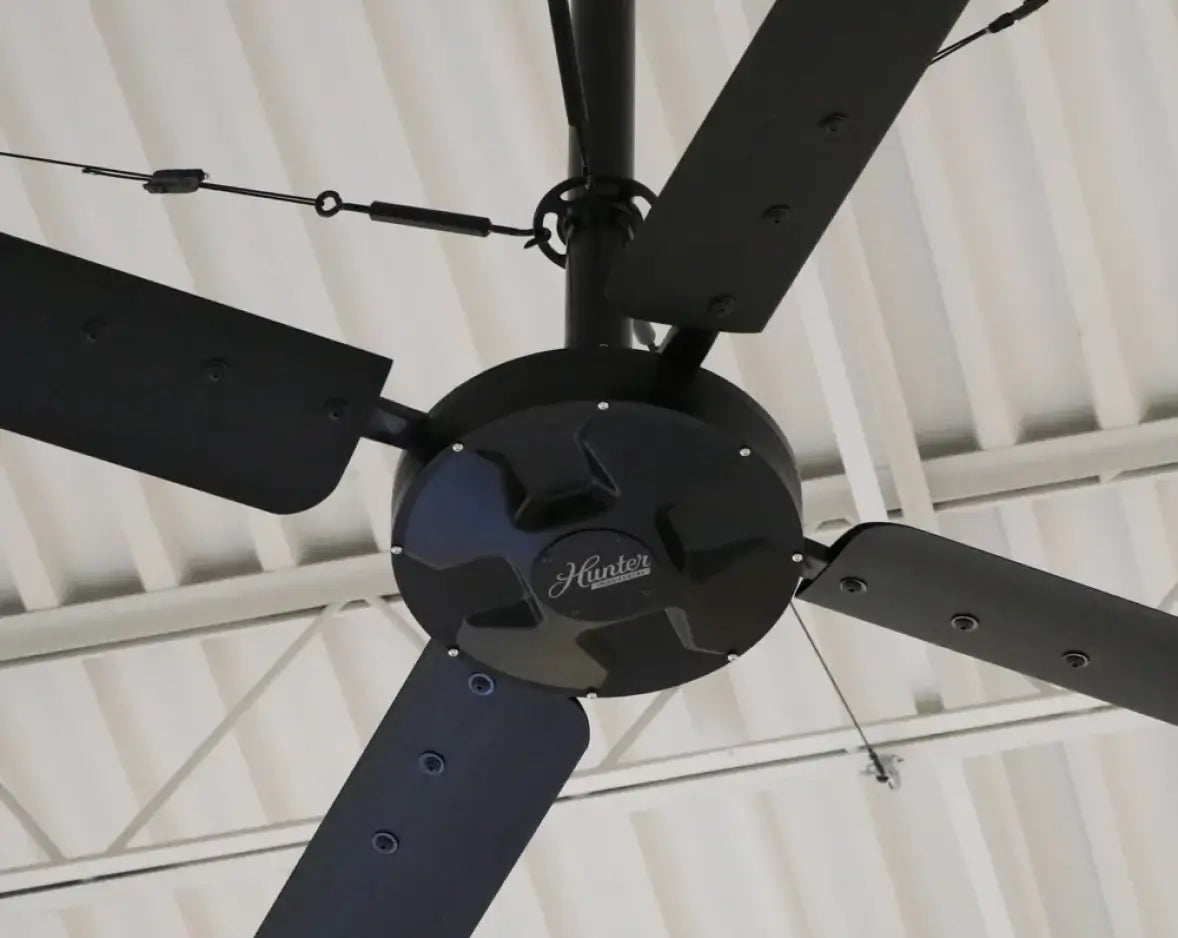

ECO 14'
An excellent balance of coverage and value. The ECO HVLS Fan covers 4,900 sq. ft. at up to 108 RPM, with blades designed by aerospace engineers for quiet, energy-efficient airflow. Making it a practical choice for facilities where structure or budget calls for a leaner installation. AMCA Certified. Limited Lifetime Warranty included.

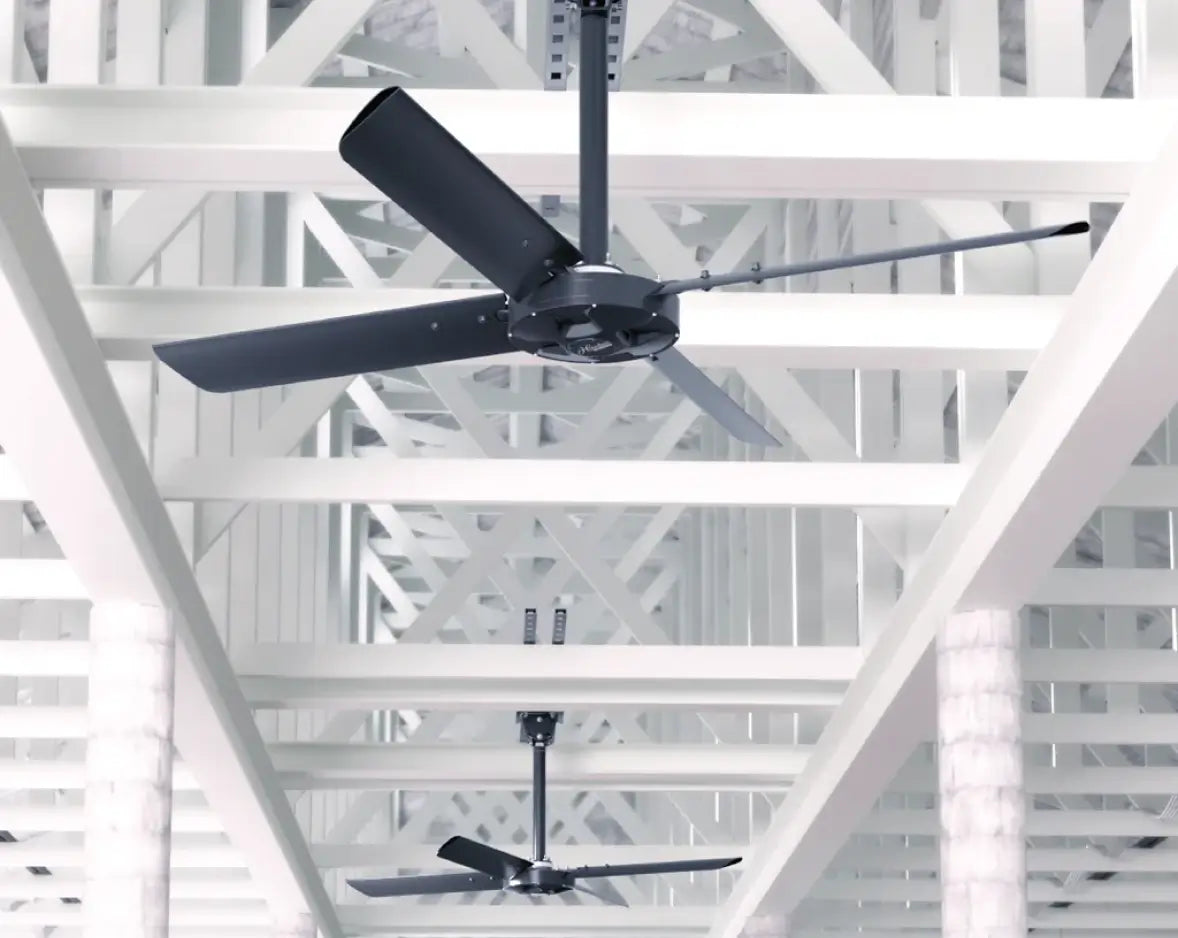

XP 14'
Compact power for tighter installations. The XP HVLS Fan delivers the same 4,900 sq. ft. of coverage as the ECO at 108 RPM, but at just 121 lbs., the lightest option in the 14-foot lineup. The XP uses a fixed downrod (available in 2' or 4' lengths), which keeps the mounting profile clean and straightforward. A solid fit for spaces with consistent ceiling heights and tighter structural load tolerances. Limited Lifetime Warranty included. AMCA Certified (except XP 7').
14-Foot HVLS Fan Specs at a Glance
Use this table to compare performance side-by-side. All three models share the same 14-foot diameter. The differences come down to coverage footprint, speed, and hanging weight.
| Series | Max Affected Area | Max Speed | Hanging Weight |
|---|---|---|---|
| Titan 14' | 7,744 sq. ft. | 103 RPM | 168 lbs |
| Eco 14' | 4,900 sq. ft. | 108 RPM | 128 lbs |
| XP 14' | 4,900 sq. ft. | 108 RPM | 121 lbs |
Note: Max affected area assumes standard ceiling height and unobstructed floor plan. Consult our team for complex layouts or partial coverage scenarios.
The Mid-Size Space Specialist
The 14-foot diameter hits a sweet spot that a lot of facility managers are looking for: meaningful coverage. These are the spaces where 14-foot fans consistently earn their keep:
Automotive Shops & Garages
Service bays can run hot. Between the vehicles, the equipment, and the technicians working at close quarters, heat and fumes can accumulate fast. A 14-foot HVLS fan keeps the air moving continuously across the bay floor, helping to reduce heat stress on your team and dilute airborne contaminants. The Direct Drive Motor is whisper-quiet, you can hear a customer conversation or a diagnostic alarm without turning anything off.
Gyms & Fitness Centers
Members notice air quality. A 14-foot HVLS fan produces a wide, gentle column of moving air, nothing like the powerful airflow of an industrial ceiling-mounted fan near the squat rack. The airflow is even and quiet, and it won't interfere with classes or conversation.
Manufacturing & Light Industrial
When ceiling heights are moderate, and the floor is active with workers and equipment, consistent circulation matters, both for comfort and for destratifying the air so your heating system isn't fighting against its own output. All 14-foot models mount to standard I-beam, Glulam, Unistrut, or purlin structure, so in most light-industrial facilities, you're working with what's already there.
Sizing & Installation Pro Tips
A 14-foot HVLS fan is a straightforward installation in most mid-size facilities, but a few planning decisions upfront make a real difference in long-term performance.
- Identify problem areas first: Before placing a fan, locate the heat-prone or stagnant air zones in your space: the center of the room, areas near machinery, and high-traffic spots. That's where your fan placement should start.
- Recommended spacing (multi-fan installations): Fan spacing should be based on blade diameter. As a general rule, follow the guidelines for your specific model.
- Ceiling height: Acceptable performance has been demonstrated from as low as 10 feet to as high as 50 feet above the floor. The 14-foot models work comfortably across that full range for most mid-size spaces.
- Mounting height for Titan & ECO: The adjustable downrod (2.5–10 ft in 6-inch increments) lets you dial in the right hanging height for optimal floor-level airflow without a custom order.
- Mounting height for XP: Uses a fixed downrod in 2' or 4' lengths. Clean, simple installation that works best in facilities with consistent, predictable ceiling heights.
- Watch for obstructions: Beams, shelving, overhead lighting, and machinery can interrupt airflow patterns. Position fans to clear these where possible or reach out to our team to work through a layout.
- Structural note: All 14-foot models mount to standard I-beam, Glulam, Unistrut, or purlin structure. Most facilities can use existing structures. Confirm load capacity with your structural engineer before installation.
- Seasonal direction: In summer, run the fan to push air downward for a perceived cooling effect. In winter, reverse the direction to recirculate warm air that collects near the ceiling back down to floor level (it’s called destratification).
Pro tip: Contact us, we make it easy to determine the right fan type, size, and quantity for your facility based on square footage and ceiling height. If your space has irregular dimensions or multiple coverage zones, our team can help you directly.
Maintenance & Longevity
All Hunter Industrial 14-foot fans are built for years of reliable, durable service in tough environments. Whether you're running one in a gym or a manufacturing shop running year-round shifts, these fans keep going without demanding much in return.
Maintenance is straightforward. Let us handle the details for you. Contact Hunter Industrial Precision Services for full installation and maintenance support.
Frequently Asked Questions: 14-Foot HVLS Fans
+
How many small fans can one 14-foot HVLS fan replace?
+
Will a 14-foot fan interfere with my sprinkler system?
+
Can I control multiple 14-foot fans from one controller?
